• 4627
4627

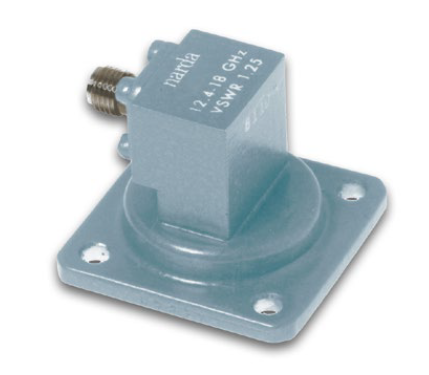

Miniature Waveguide to Coaxial Right Angle Adapters SMA and 2.92 mm Types
  • Low VSWR
  • Low Insertion Loss
  • Lightweight
  • Precision Coaxial Connectors Either
  • SMA or 2.92 mm
specification

MODEL NUMBER

4627

FREQUENCY RANGE GHz

12.4 - 18.0

CWPowerW

50

WAVEGUIDE SIZE

WR62

PeakPowerkW

3

FLANGE TYPE

Cover

FLANGE EQUIVALENT TO

UG-1665/U

VSWR (max)

1.25

WEIGHT

lb

kg



0.08

0.04

{
