Microwave Products

model DESCRIPTION CONNECTOR FREQUENCE VSWR Supplier
4601
4601 MINIATURE WAVEGUIDE TO COAXIAL ADAPTERS SMA,3.5MM,2.9MM TYPES 8.2-12.4 GHz 1.25 (max) -
4602
4602 MINIATURE WAVEGUIDE TO COAXIAL ADAPTERS SMA,3.5MM,2.9MM TYPES 5.85-8.2 GHz 1.1 (max) -
4608B
4608B MINIATURE WAVEGUIDE TO COAXIAL ADAPTERS SMA,3.5MM,2.9MM TYPES 18-26.5 GHz 1.25 (max) -
4609

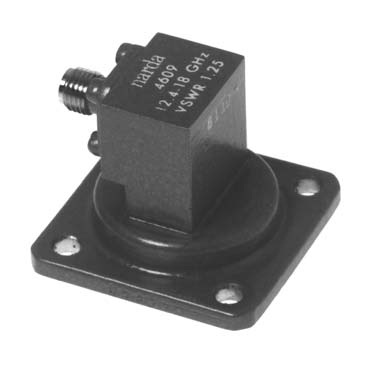

4609 MINIATURE WAVEGUIDE TO COAXIAL ADAPTERS SMA,3.5MM,2.9MM TYPES 12.4-18 GHz 1.25 (max) -
55

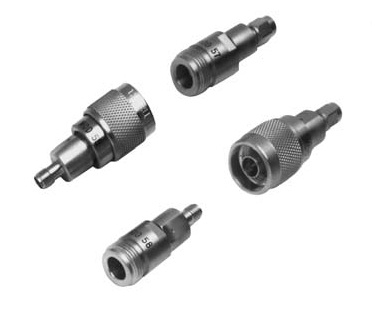

55 COAXIAL ADAPTER TYPE N DC-18 GHz 1.25(max) SMA-F to N-M
56
56 COAXIAL ADAPTER TYPE N DC-18 GHz 1.25(max) SMA-M to N-M
57

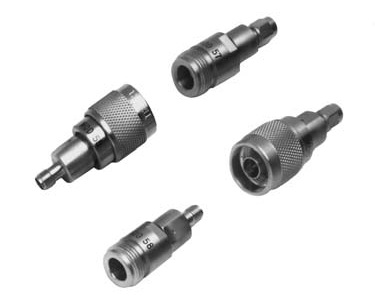

57 COAXIAL ADAPTER TYPE N DC-18 GHz 1.25(max) SMA-M to N-F
58
58 COAXIAL ADAPTER TYPE N DC-18 GHz 1.25(max) SMA-F to N-F
59

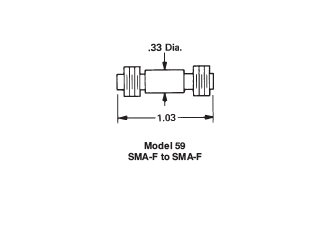

59 COAXIAL ADAPTERS SMA AND 3.5 MM DC-18 GHz 1.25(max) SMA-F to SMA-F
601A
601A WAVEGUIDE TO TYPE N COAXIAL ADAPTERS 8.2-12.4 GHz 1.25 (max) -
